Structured Cabling &
Network Installation Sarasota FL
Professional Ubiquiti UniFi network infrastructure and Cat6A structured cabling for Sarasota businesses. Fast, secure, and future-ready — WiFi 7, 10-Gigabit switching, IDS/IPS intrusion prevention, VLAN segmentation, and centralized cloud management.
Enterprise Networking — Without the Enterprise Price Tag
Most Sarasota businesses are running networks built on consumer-grade routers and ISP-provided equipment — the kind that drops WiFi, can't separate camera traffic from business data, and has no real firewall. When one of those networks gets breached, everything on it is exposed.
Ubiquiti UniFi is the standard professional IT departments use when they want Cisco-level features without Cisco prices. Every device — router, switches, WiFi access points — is managed from a single controller called UniFi Network, accessible from any browser or the mobile app. You see your entire network in real time: every device connected, every bandwidth usage, every blocked threat.
We pair Ubiquiti hardware with Cat6A structured cabling — the physical foundation that determines how fast, reliable, and future-proof your network is. Together they deliver a business network that supports WiFi 7, 10-Gigabit speeds, security cameras, access control, and VoIP — all segmented, documented, and ready to scale.
One Controller — Everything
All switches, APs, cameras, and access points managed from a single UniFi dashboard — no separate apps per device.
WiFi 7 — Multi-Gigabit
U7 Pro and U7 Pro Max access points deliver real-world speeds that keep up with 50+ concurrent devices.
IDS/IPS Built-In
Real-time intrusion detection and prevention scans all traffic against continuously updated threat signatures.
VLAN Segmentation
Cameras, IoT, guest WiFi, and workstations each on isolated networks — a compromised device can't reach your data.
CyberSecure Protection
Proofpoint threat intelligence + Cloudflare DNS filtering blocks malicious domains before they load.
PCI-DSS & HIPAA Ready
UniFi's firewall zones, VLANs, and audit logs support compliance requirements for retail, medical, and financial businesses.
Network Equipment We Design & Install
Every system is designed from scratch for your space — right hardware, right placement, right configuration.
Dream Machine Pro Max
Enterprise Gateway & Security
- ✔ 5 Gbps IDS/IPS throughput
- ✔ Built-in UniFi controller
- ✔ Advanced firewall + NAT
- ✔ Multi-WAN failover
- ✔ VPN server built-in
- ✔ CyberSecure ready
- ✔ 10G SFP+ uplinks
UniFi Switch Pro Max
PoE+ Multi-Gigabit Switching
- ✔ 2.5GbE PoE+ ports
- ✔ Powers cameras & APs via cable
- ✔ 10GbE SFP+ uplinks
- ✔ VLAN-aware (802.1Q)
- ✔ Layer 3 routing capable
- ✔ Stackable for expansion
- ✔ UniFi managed, zero-touch
U7 Pro / U7 Pro Max
WiFi 7 Access Points
- ✔ WiFi 7 — up to 9.3 Gbps
- ✔ Tri-band + 6 GHz band
- ✔ 300+ concurrent clients
- ✔ PoE powered — no outlet needed
- ✔ Zero-handoff roaming
- ✔ Band steering + airtime fairness
- ✔ Guest VLAN + captive portal
UniFi CyberSecure
Advanced Data Protection
- ✔ Proofpoint threat intelligence
- ✔ Cloudflare DNS filtering
- ✔ Malware & phishing blocking
- ✔ Real-time threat dashboard
- ✔ Honeypot intrusion detection
- ✔ VPN audit logs
- ✔ PCI-DSS & HIPAA support
How Ubiquiti UniFi Protects Your Business Data
A Sarasota business network that just "connects to the internet" is not enough. Here's how we layer security into every installation.
IDS/IPS — Intrusion Detection & Prevention
The Dream Machine Pro Max inspects every packet in real time against a live database of threat signatures. IDS mode alerts you to attacks. IPS mode blocks them automatically — 5 Gbps of throughput means this protection never slows your network.
VLAN Segmentation — Isolated Networks
We create separate VLANs for cameras, access control, IoT devices, business workstations, and guest WiFi. Each has its own firewall policy. If a smart TV or camera is ever compromised, it cannot reach your computers, servers, or payment systems.
CyberSecure — DNS & Threat Filtering
Powered by Proofpoint threat intelligence and Cloudflare DNS filtering, CyberSecure blocks malicious domains, phishing sites, and malware before they even load — before a user can accidentally click a bad link. Real-time threat dashboard shows every blocked attempt.
Advanced Firewall Rules
Zone-based firewall policies control exactly which devices can talk to each other and which cannot. We lock down inter-VLAN routing so your guest WiFi cannot reach internal resources, and your camera network cannot initiate connections to the internet independently.
Honeypot Intrusion Detection
UniFi can deploy decoy services on your network. Any device that probes or connects to a honeypot is flagged immediately as suspicious — alerting you to internal threats or rogue devices before they cause damage.
VPN & Audit Logging
The Dream Machine Pro Max includes a built-in VPN server so remote employees connect securely. All VPN sessions are logged with identity, duration, and source IP. Logs can be exported for PCI-DSS compliance audits or HIPAA reporting.
Cat6A Structured Cabling — Built to Last 20 Years
The best Ubiquiti hardware in the world performs poorly on bad cable. Structured cabling is the physical infrastructure that everything else runs on — and doing it right the first time saves you from expensive re-runs later. We install Cat6A as the standard for all new commercial installations: it supports 10-Gigabit speeds over 100 meters, handles more PoE power than Cat6, and is required to get full performance from WiFi 7 access points.
Every cable run we install is tested with Fluke equipment and certified to TIA-568 standards. Both ends of every cable are labeled. A port map document is left with the client. In Sarasota's commercial buildings — concrete block, tile roofs, drop ceilings — we know how to get clean cable paths with minimal disruption to your space.
Cat6A (10GbE standard)
All new runs — supports WiFi 7, 10G switches, and PoE++ devices.
Cat6 (camera & intercom runs)
Cost-effective for 1GbE runs where 10G is not required.
Single-mode fiber optic
Long runs between buildings, floors, or high-bandwidth backbone.
Patch panels & racks
Clean 19" rack termination with labeled ports and cable management.
Fluke certified testing
Every run tested and certified — no guessing about cable performance.
Full documentation
Port map, cable labels, and as-built drawing delivered at project completion.
Structured Cabling & Network Installations in Sarasota

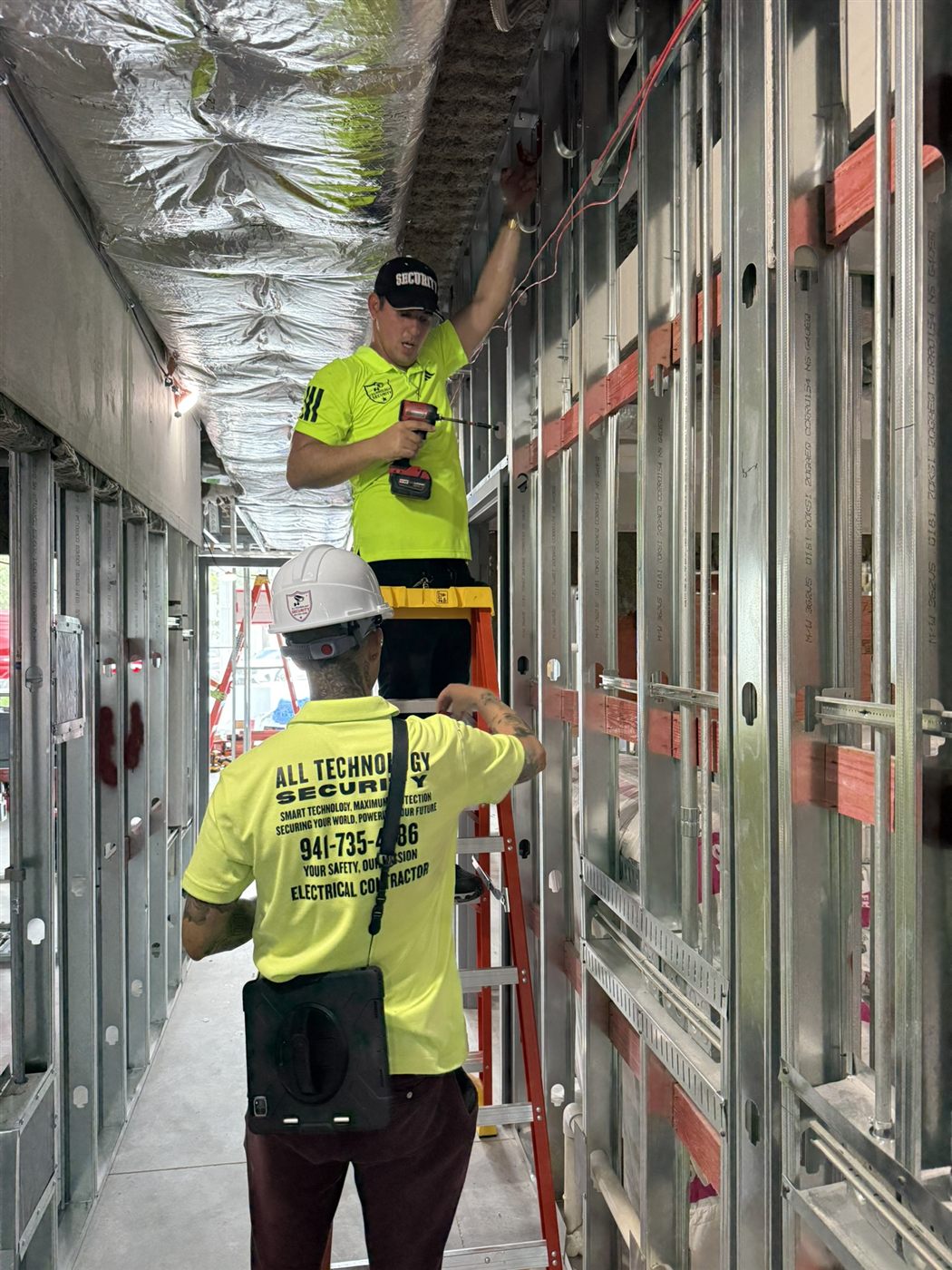

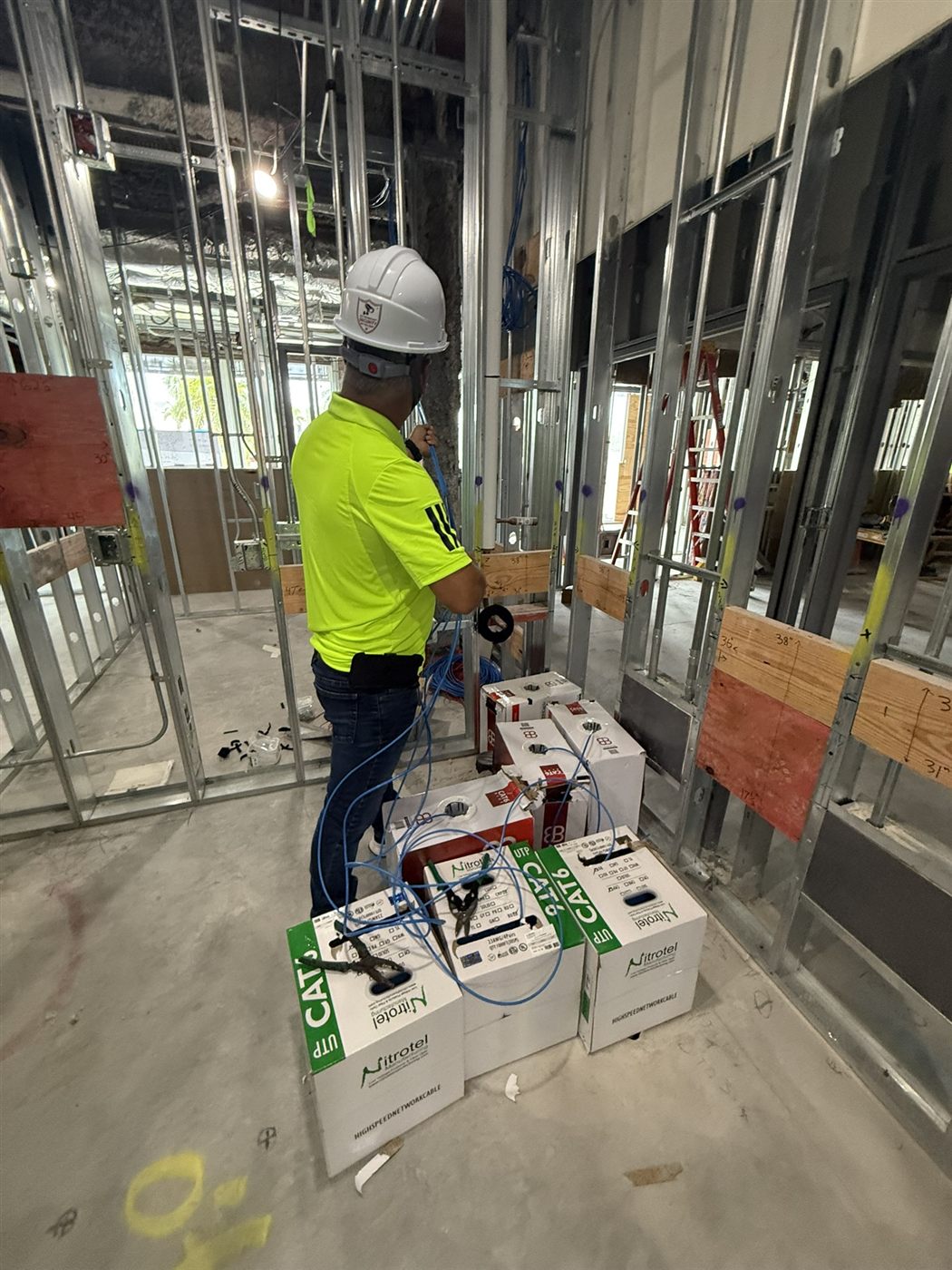

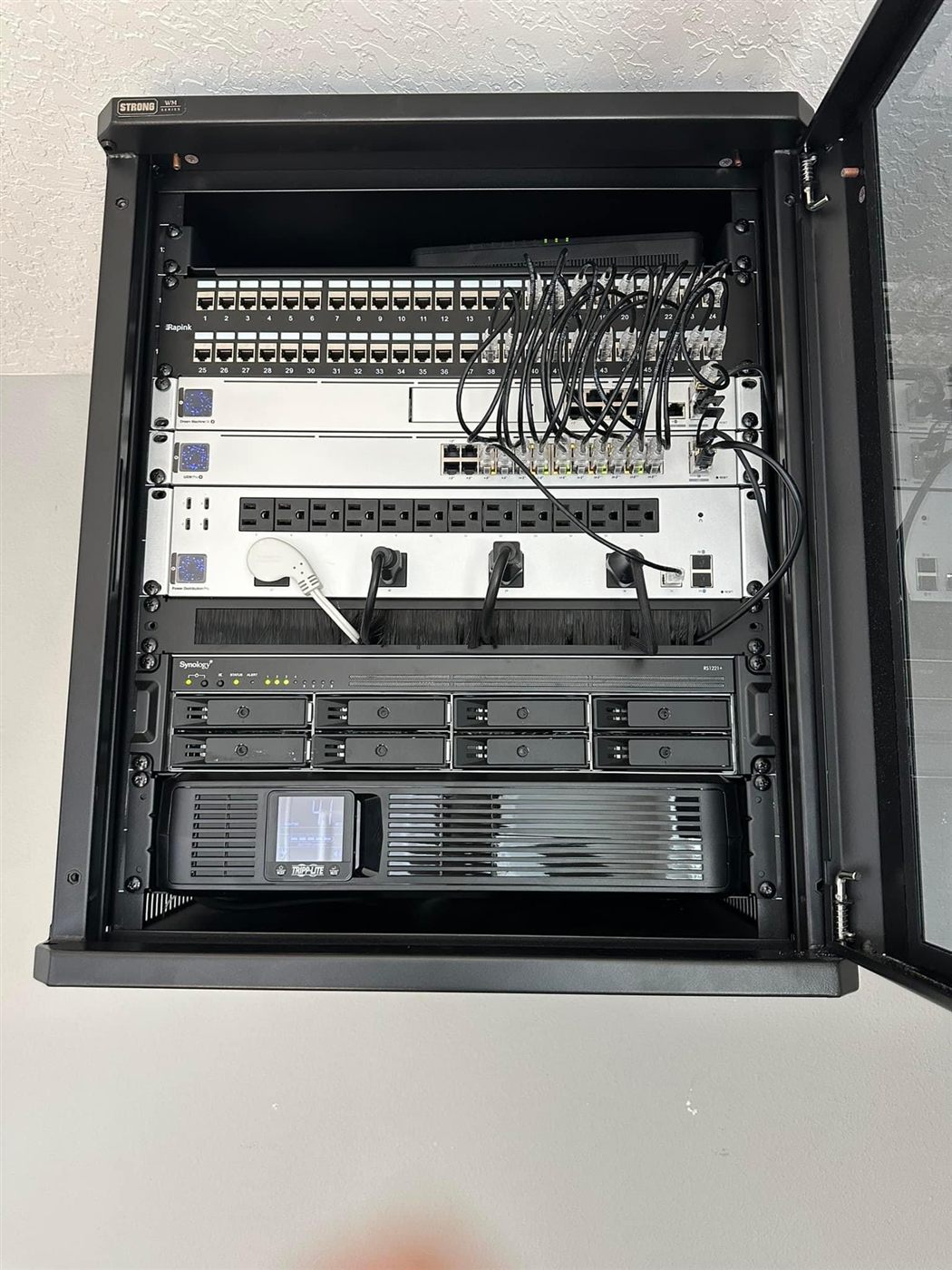

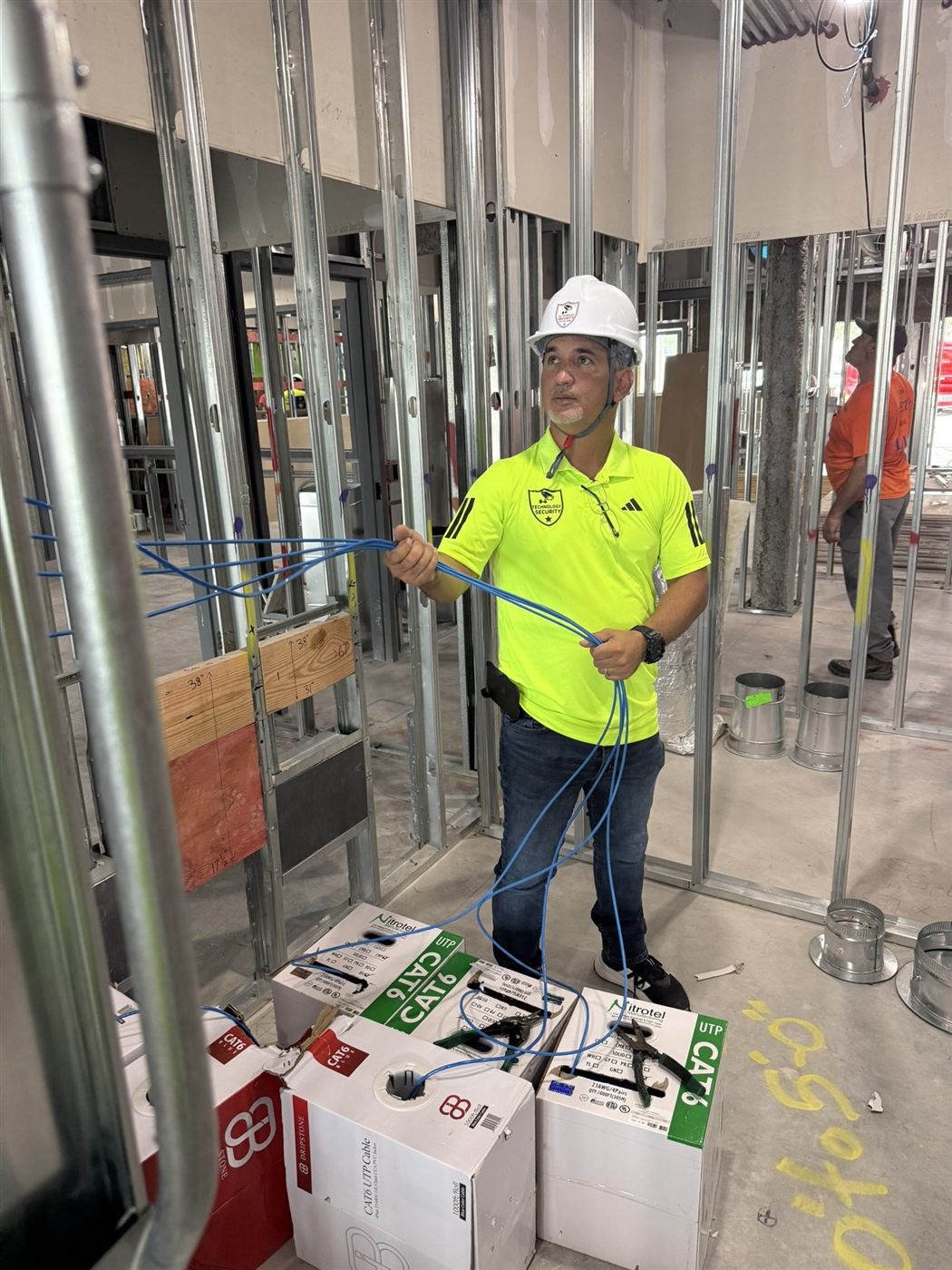

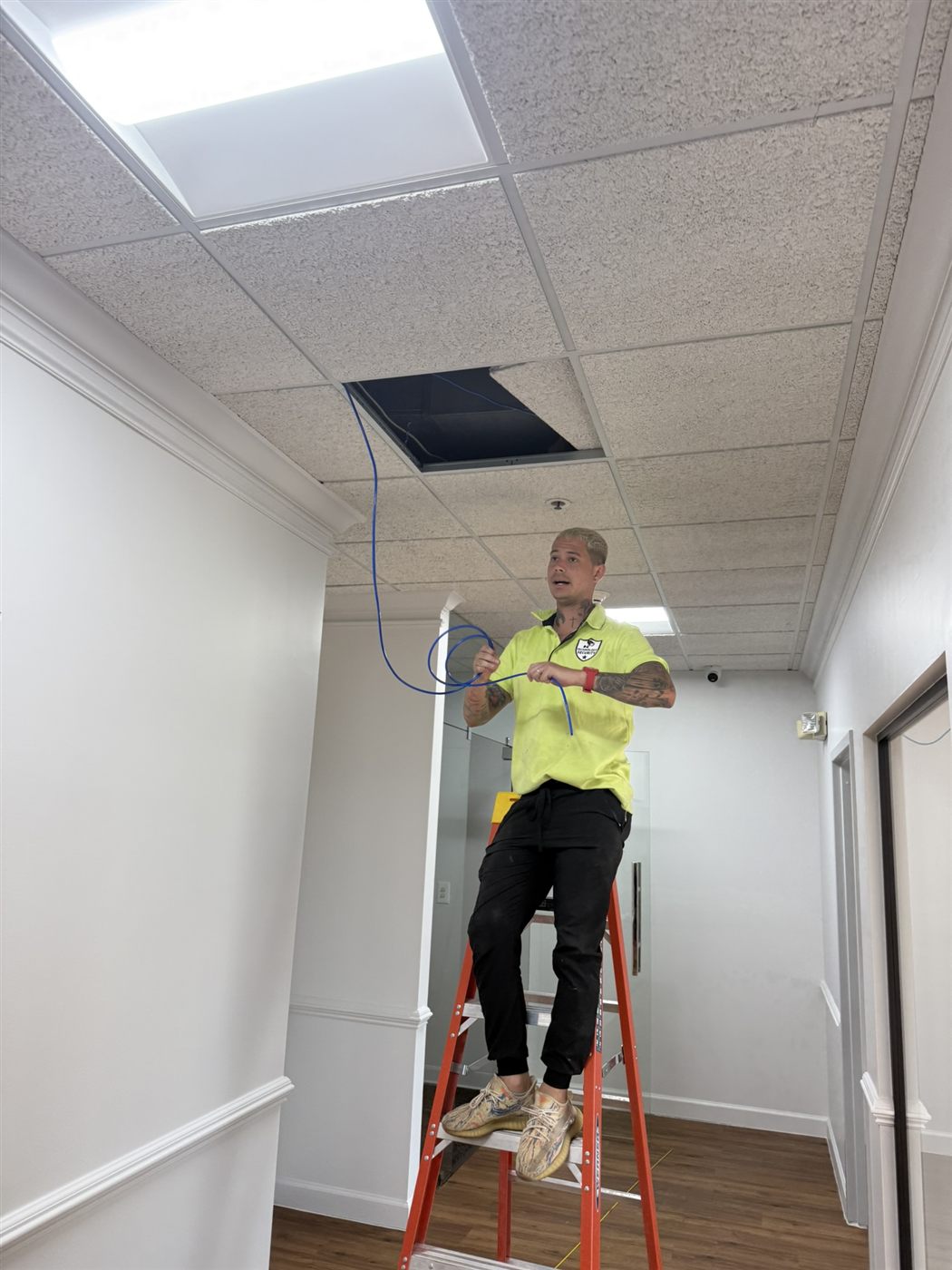

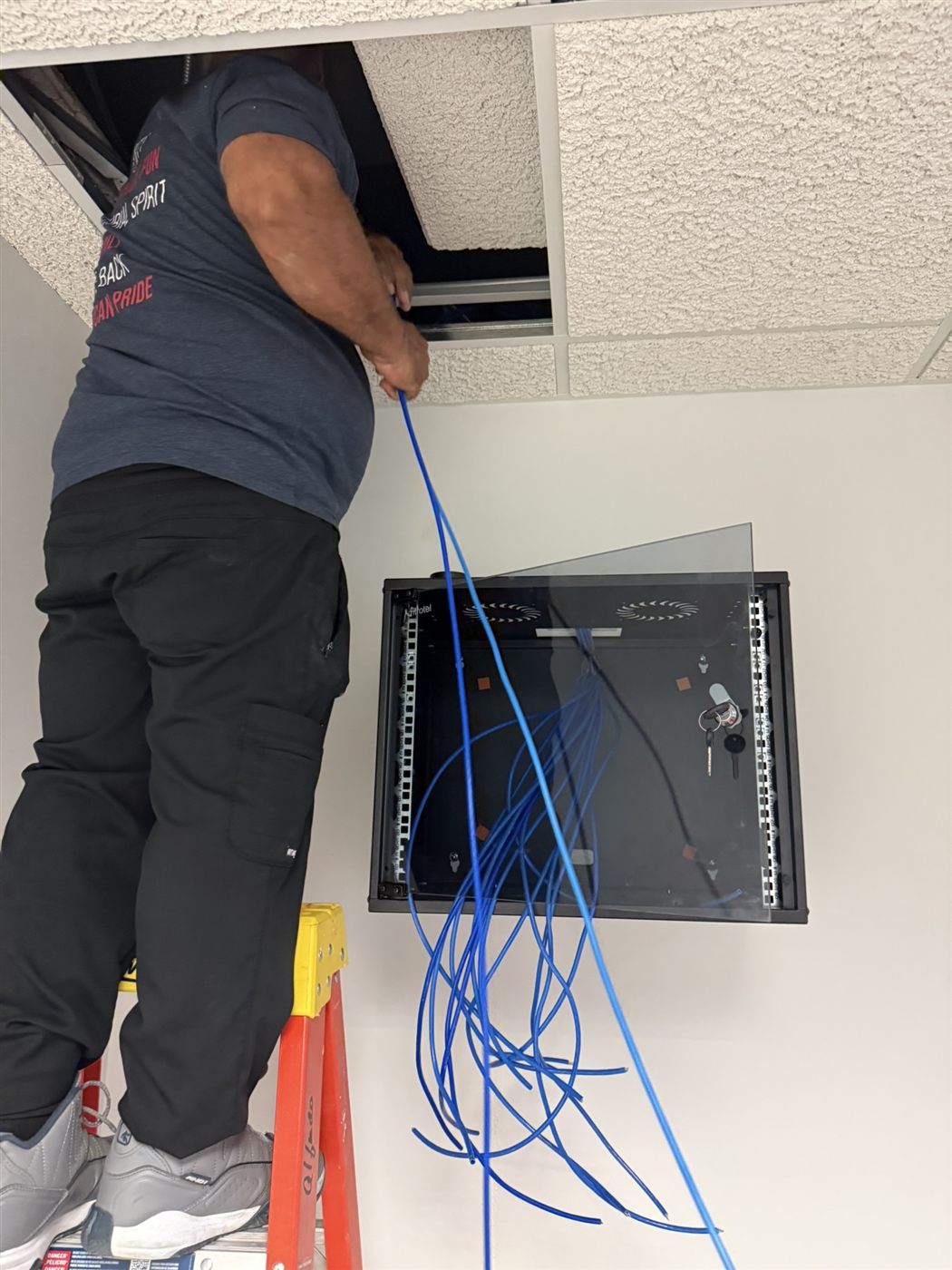

Every photo below is a real project completed by our team in the Sarasota & Manatee County area.
Network & Cabling for Every Business Type in Sarasota
Offices & Professional Services
- ✔ Reliable gigabit to every desk and conference room
- ✔ WiFi 7 APs with zero-handoff roaming between floors
- ✔ Separate VLANs for staff, guests, and IoT devices
- ✔ VPN for remote employees
- ✔ Video conferencing bandwidth prioritization (QoS)
Retail, Restaurants & Hospitality
- ✔ Guest WiFi isolated from POS and back-office systems
- ✔ PCI-DSS compliant network segmentation
- ✔ Security camera VLAN separate from business traffic
- ✔ Captive portal for guest WiFi with branding
- ✔ CyberSecure blocks malware and phishing on all devices
Warehouses, Medical & Industrial
- ✔ Long Cat6A runs across large floor areas
- ✔ Fiber optic backbone between buildings or floors
- ✔ PoE switches powering cameras and access control
- ✔ HIPAA-compliant VLAN segmentation for medical offices
- ✔ Redundant WAN failover so operations never stop
Network & Cabling Installation Cost in Sarasota FL
All prices include Cat6A cabling, Ubiquiti hardware, configuration, and documentation. Free on-site estimate with no obligation.
Small Office
$1,500 – $4,000
Up to 20 drops — small office or retail.
- ✓ Up to 20 Cat6A drops
- ✓ Patch panel & cable management
- ✓ UniFi 8–16 port PoE switch
- ✓ 1–2 WiFi 7 access points
- ✓ Dream Machine gateway
- ✓ Basic VLAN segmentation
- ✓ Fluke-tested & labeled
Business Network
$4,000 – $10,000
Most popular for Sarasota businesses.
- ✓ 20–50 Cat6A drops
- ✓ Server room / network closet setup
- ✓ UniFi Switch Pro Max (PoE+)
- ✓ 3–6 WiFi 7 access points
- ✓ Dream Machine Pro Max gateway
- ✓ Full VLAN segmentation
- ✓ IDS/IPS + CyberSecure protection
- ✓ Documentation & training
Enterprise / Multi-Site
$8,000 – $25,000+
Large facilities, multiple buildings.
- ✓ 50+ Cat6A drops
- ✓ Fiber optic backbone
- ✓ Multi-switch stacking
- ✓ Multiple WiFi 7 APs per floor
- ✓ Multi-WAN redundancy
- ✓ Site-to-site VPN
- ✓ CyberSecure full deployment
- ✓ PCI / HIPAA compliance review
Prices are estimates for the Sarasota FL area. Final cost after free on-site assessment. Hardware varies by project scope.
How Network & Cabling Installation Works
Site Survey & Network Design
We walk your space, map cable paths, measure distances, count devices, and design the VLAN and IP architecture — before touching a single cable. You get a network diagram with the quote.
Hardware Selection & Quote
We specify exactly which Ubiquiti switches, APs, and gateway fit your building and budget. Itemized quote with no hidden costs — you know what you're getting before we schedule the install.
Structured Cabling Install
Cat6A runs through drop ceilings, conduit, or wall cavities. Patch panel termination, testing, and labeling. Every port documented. Certified with Fluke before we move to network setup.
Network Configuration & Training
Ubiquiti hardware deployed, VLANs configured, IDS/IPS and CyberSecure activated, WiFi coverage verified. We train you on UniFi Network so you can manage your own system — and we're always available for support.
Network & Cabling Service Area
Serving all of Sarasota County and most of Manatee County. No travel fee within our service area.
Structured Cabling & Network Questions — Sarasota FL
Build a Fast, Secure Network Foundation in Sarasota
Free on-site survey. Licensed low-voltage contractor. Ubiquiti authorized installer. Most installs completed within the week.
